B66371G0000X127 | TDK (EPCOS)
E core, N27, 8850 nH, -20/+30 %, (L x W x H) 70.5 x 32 x 33.2 mm, B66371G0000X127
Order No.: 83D985
EAN: 4099889059779
MPN:
B66371G0000X127
B66371GX127
Unit Price (€ / pc.)
8.5918 € *
Standard delivery time from the manufacturer is: 20 Weeks

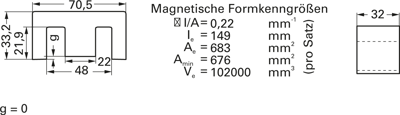

E cores E70/33/32, type TDK/Epcos B66371.
Made of silicon ferrite material; refer to the corresponding data table at the end of the cores section. Core without air gap.
Technical attributes (type, dimension g, AL value, material type): B66371GX127, 0 mm, 8850 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | no air gap | |
| AL value | 8850 nH | |
| Tolerance | -20/+30 % | |
| Width | 32 mm | |
| Height | 33.2 mm | |
| Material | N27 | |
| Core shape | E | |
| Length | 70.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 30 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
