B66367G1000X187 | TDK (EPCOS)

ETD core, N87, 314 nH, (L x W x H) 48.5 x 24.9 x 16.7 mm, B66367G1000X187

Order No.: 83D5360
EAN: 4099889059175
MPN:
B66367G1000X187
Series: B663x

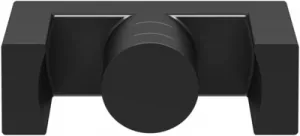

B66367G1000X187 TDK (EPCOS) Ferrite cores Image 1

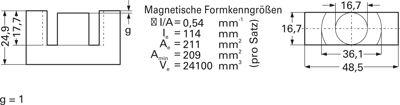

B66367G1000X187 TDK (EPCOS) Ferrite cores Image 2
B66367G1000X187 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
3.7128 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
891.07 € *
Price list
Quantity
Price per unit*
240 pcs.
3.7128 €
1200 pcs.
3.4867 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores ETD49, type TDK/Epcos B66367.

To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.

Technical attributes (type, dimension g, AL value, material type): B66367G1000X187, 1.0 mm, 314 nH, N87

Technical specifications
Filter Property Value
AL value 314 nH
Air gap 1 mm
Core shape ETD
Length 48.5 mm
Height 16.7 mm
Material N87
Width 24.9 mm
Logistics
Property Value
Customs tariff number 85049011
Original Packaging Bulk with 120 pieces
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
