B66367G1000X127 | TDK (EPCOS)
ETD core, N27, 314 nH, (L x W x H) 48.5 x 24.9 x 16.7 mm, B66367G1000X127
Order No.: 83D5354
EAN: 4099889059144
MPN:
B66367G1000X127
Unit Price (€ / pc.)
3.3796 € *
Standard delivery time from the manufacturer is: 12 Weeks

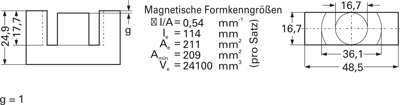

E cores ETD49, type TDK/Epcos B66367.
To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.
Technical attributes (type, dimension g, AL value, material type): B66367G1000X127, 1.0 mm, 314 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | N27 | |
| Air gap | 1 mm | |
| AL value | 314 nH | |
| Width | 24.9 mm | |
| Height | 16.7 mm | |
| Core shape | ETD | |
| Length | 48.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Bulk with 120 pieces |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
