B66367G0500X187 | TDK (EPCOS)
ETD core, N87, 525 nH, (L x W x H) 48.5 x 24.9 x 16.7 mm, B66367G0500X187
Unit Price (€ / pc.)
5.5930 € *
Available: 405 pcs.
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5930 €
10 pcs.
4.9266 €
120 pcs.
4.3197 €
240 pcs.
4.1412 €
960 pcs.
3.8675 €
*incl. VAT plus shipping costs
Subject to prior sale

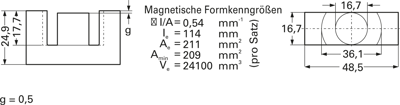

E cores ETD49, type TDK/Epcos B66367.
To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.
Technical attributes (type, dimension g, AL value, material type): B66367G500X187, 0.5 mm, 525 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 16.7 mm | |
| Material | N87 | |
| Length | 48.5 mm | |
| AL value | 525 nH | |
| Width | 24.9 mm | |
| Core shape | ETD | |
| Air gap | 0.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 120 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
