B66367G0500X127 | TDK (EPCOS)

ETD core, N27, 525 nH, (L x W x H) 48.5 x 16.7 x 24.9 mm, B66367G0500X127

Order No.: 83D5352
EAN: 4099889059137
MPN:
B66367G0500X127
B66367G500X127
B66367G0500X127 TDK (EPCOS) Ferrite cores Image 1
B66367G0500X127 TDK (EPCOS) Ferrite cores Image 2
B66367G0500X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
3.3201 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
796.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
240 pcs.
3.3201 €

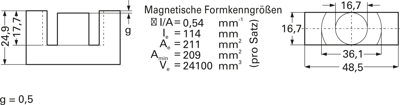

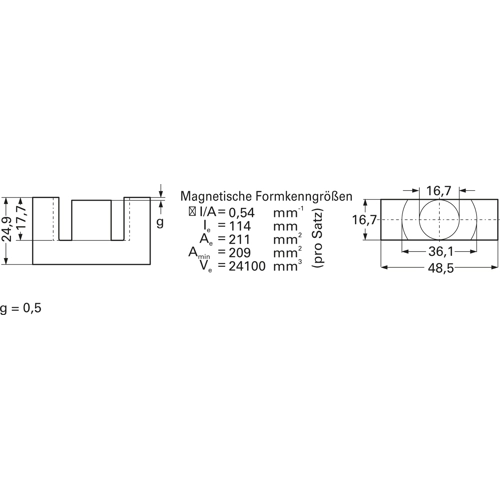

E cores ETD49, type TDK/Epcos B66367.

To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.

Technical attributes (type, dimension g, AL value, material type): B66367G500X127, 0.5 mm, 525 nH, N27

Technical specifications
Width 16.7 mm
Height 24.9 mm
Length 48.5 mm
Material N27
Air gap no air gap
AL value 525 nH
Core shape ETD
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 120 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
