B66367G0000X187 | TDK (EPCOS)
ETD core, N87, 3800 nH, -20/+30 %, (L x W x H) 48.5 x 16.7 x 24.9 mm, B66367G0000X187
Unit Price (€ / pc.)
5.3431 € *
Available: 101 pcs.
Total Price:
5.34 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3431 €
10 pcs.
4.7124 €
120 pcs.
4.1174 €
240 pcs.
3.9746 €
960 pcs.
3.7128 €
*incl. VAT plus shipping costs
Subject to prior sale
E cores ETD49, type TDK/Epcos B66367.

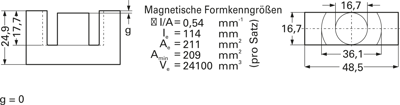

To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.
Technical attributes (type, dimension g, AL value, material type): B66367GX187, 0 mm, 3800 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 24.9 mm | |
| Material | N87 | |
| Tolerance | -20/+30 % | |
| Length | 48.5 mm | |
| AL value | 3800 nH | |
| Width | 16.7 mm | |
| Core shape | ETD | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 120 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
