B66367G0000X127 | TDK (EPCOS)

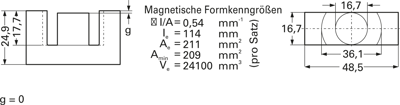

ETD core, N27, 3700 nH, (L x W x H) 48.5 x 16.7 x 24.9 mm, B66367G0000X127

Order No.: 83D5350
EAN: 4099889059120
MPN:
B66367G0000X127
B66367GX127
Series: B663x
B66367G0000X127 TDK (EPCOS) Ferrite cores Image 1
B66367G0000X127 TDK (EPCOS) Ferrite cores Image 2
B66367G0000X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
3.0821 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
739.70 € *
Price list
Quantity
Price per unit*
240 pcs.
3.0821 €
1200 pcs.
2.8798 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores ETD49, type TDK/Epcos B66367.

To IEC61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 58, W 55, H 43.5 mm.

Technical attributes (type, dimension g, AL value, material type): B66367GX127, 0 mm, 3700 nH, N27

Technical specifications
Filter Property Value
Material N27
Air gap no air gap
AL value 3700 nH
Width 16.7 mm
Height 24.9 mm
Core shape ETD
Length 48.5 mm
Logistics
Property Value
Country of origin IN
Original Packaging Bulk with 120 pieces
Customs tariff number 85049011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
