B66365G1000X187 | TDK (EPCOS)

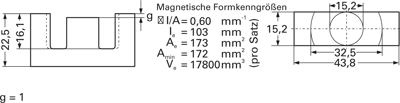

ETD core, N87, 262 nH, (L x W x H) 43.8 x 22 x 15.2 mm, B66365G1000X187
Unit Price (€ / pc.)
5.0694 € *
Available: 1,152 pcs.
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
10 pcs.
4.4744 €
144 pcs.
3.9151 €
288 pcs.
3.7604 €
1152 pcs.
3.5224 €
*incl. VAT plus shipping costs
Subject to prior sale
E cores ETD44, type TDK/Epcos B66365.
To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 53, W 50, H 41 mm.
Technical attributes (type, dimension g, AL value, material type): B66365G1000X187, 1.0 mm, 262 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 262 nH | |
| Air gap | 1 mm | |
| Core shape | ETD | |
| Length | 43.8 mm | |
| Height | 15.2 mm | |
| Material | N87 | |
| Width | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 144 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
