B66365G0500X127 | TDK (EPCOS)

ETD core, N27, 438 nH, (L x W x H) 43.8 x 22 x 15.2 mm, B66365G0500X127

Order No.: 83D5312
EAN: 4099889059076
MPN:
B66365G0500X127
B66365G500X127
B66365G0500X127 TDK (EPCOS) Ferrite cores Image 1
B66365G0500X127 TDK (EPCOS) Ferrite cores Image 2
B66365G0500X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
3.1892 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
918.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
288 pcs.
3.1892 €

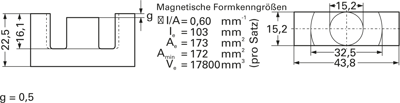

E cores ETD44, type TDK/Epcos B66365.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 53, W 50, H 41 mm.

Technical attributes (type, dimension g, AL value, material type): B66365G500X127, 0.5 mm, 438 nH, N27

Technical specifications
Width 22 mm
Height 15.2 mm
Length 43.8 mm
Material N27
Air gap 0.5 mm
AL value 438 nH
Core shape ETD
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 144 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
