B66363G1000X187 | TDK (EPCOS)

ETD core, N87, 196 nH, (L x W x H) 38.9 x 12.8 x 20 mm, B66363G1000X187

Order No.: 83D5280
EAN: 4099889059045
MPN:
B66363G1000X187
Series: B663x

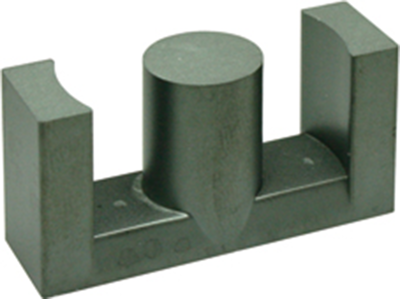

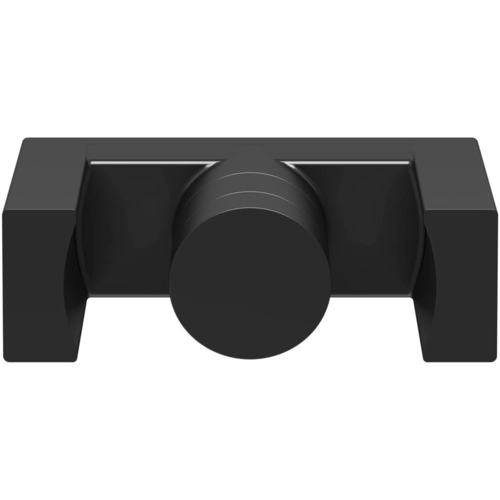

B66363G1000X187 TDK (EPCOS) Ferrite cores Image 1
B66363G1000X187 TDK (EPCOS) Ferrite cores Image 2
B66363G1000X187 TDK (EPCOS) Ferrite cores Image 3
B66363G1000X187 TDK (EPCOS) Ferrite cores Image 4
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
1,466.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
1.8326 €

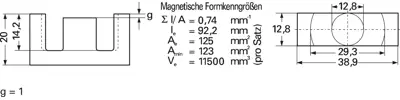

E cores ETD39, type TDK/Epcos B66363.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 48, W 45, H 38 mm.

Technical attributes (type, dimension g, AL value, material type): B66363G1000X187, 1.0 mm, 196 nH, N87

Technical specifications
Filter Property Value
Material N87
Air gap 1 mm
AL value 196 nH
Width 12.8 mm
Height 20 mm
Core shape ETD
Length 38.9 mm
Logistics
Property Value
Country of origin IN
Original Packaging Bulk with 200 pieces
Customs tariff number 85049011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
