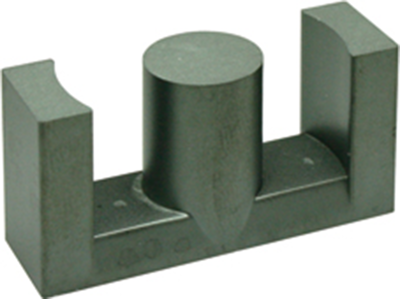

B66363G0000X127 | TDK (EPCOS)
ETD core, N27, 2550 nH, -20/+30 %, (L x W x H) 38.9 x 12.8 x 20 mm, B66363G0000X127
Unit Price (€ / pc.)
3.3082 € *
Available: 1,810 pcs.
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.9155 €
200 pcs.
2.5466 €
400 pcs.
2.4514 €
800 pcs.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale
E cores ETD39, type TDK/Epcos B66363.

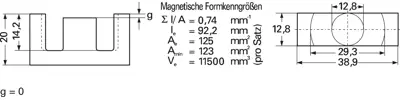

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 48, W 45, H 38 mm.
Technical attributes (type, dimension g, AL value, material type): B66363GX127, 0 mm, 2550 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 2550 nH | |
| Core shape | ETD | |
| Height | 20 mm | |
| Air gap | no air gap | |
| Material | N27 | |
| Tolerance | -20/+30 % | |
| Width | 12.8 mm | |
| Length | 38.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
