B66361G1000X127 | TDK (EPCOS)

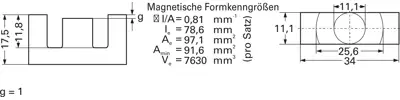

ETD core, N27, 153 nH, (L x W x H) 34 x 11.1 x 17.5 mm, B66361G1000X127

Order No.: 83D5246
EAN: 4099889058956
MPN:
B66361G1000X127
Series: B663x
B66361G1000X127 TDK (EPCOS) Ferrite cores Image 1
B66361G1000X127 TDK (EPCOS) Ferrite cores Image 2
B66361G1000X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,342.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1200 pcs.
1.1186 €

E cores ETD34, type TDK/Epcos B66361.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 43, W 40, H 35 mm, vertical L 27.5, W 40, H 46 mm.

Technical attributes (type, dimension g, AL value, material type): B66361G1000X127, 1.0 mm, 153 nH, N27

Technical specifications
Filter Property Value
Material N27
Air gap 1 mm
AL value 153 nH
Width 11.1 mm
Height 17.5 mm
Core shape ETD
Length 34 mm
Logistics
Property Value
Country of origin CZ
Original Packaging Bulk with 300 pieces
Customs tariff number 85049011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
