B66361G0500X187 | TDK (EPCOS)

ETD core, N87, 251 nH, (L x W x H) 34 x 11.1 x 17.5 mm, B66361G0500X187

Order No.: 83D5252
EAN: 4099889058987
MPN:
B66361G0500X187
B66361G500X187
Series: B663x
B66361G0500X187 TDK (EPCOS) Ferrite cores Image 1
B66361G0500X187 TDK (EPCOS) Ferrite cores Image 2
B66361G0500X187 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available: 1,100 pcs.
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2372 €
10 pcs.
1.8683 €
100 pcs.
1.5827 €
300 pcs.
1.4518 €
1200 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

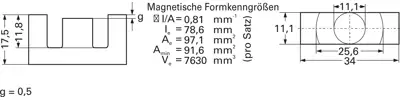

E cores ETD34, type TDK/Epcos B66361.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 43, W 40, H 35 mm, vertical L 27.5, W 40, H 46 mm.

Technical attributes (type, dimension g, AL value, material type): B66361G500X187, 0.5 mm, 251 nH, N87

Technical specifications
Filter Property Value
Material N87
Air gap 0.5 mm
AL value 251 nH
Width 11.1 mm
Height 17.5 mm
Core shape ETD
Length 34 mm
Logistics
Property Value
Country of origin IN
Original Packaging Tray with 300 pieces
Customs tariff number 85049011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
