B66361G0500X127 | TDK (EPCOS)

ETD core, N27, 251 nH, (L x W x H) 34 x 11.1 x 17.5 mm, B66361G0500X127

Order No.: 83D5244
EAN: 4099889058949
MPN:
B66361G0500X127
B66361G500X127
Series: B663x
B66361G0500X127 TDK (EPCOS) Ferrite cores Image 1
B66361G0500X127 TDK (EPCOS) Ferrite cores Image 2
B66361G0500X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
1.5113 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,813.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1200 pcs.
1.5113 €

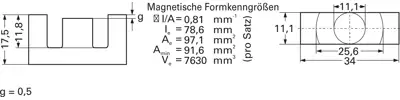

E cores ETD34, type TDK/Epcos B66361.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 43, W 40, H 35 mm, vertical L 27.5, W 40, H 46 mm.

Technical attributes (type, dimension g, AL value, material type): B66361G500X127, 0.5 mm, 251 nH, N27

Technical specifications
Filter Property Value
Material N27
Air gap 0.5 mm
AL value 251 nH
Width 11.1 mm
Height 17.5 mm
Core shape ETD
Length 34 mm
Logistics
Property Value
Country of origin CZ
Original Packaging Tray with 300 pieces
Customs tariff number 85049011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
