B66361G0200X187 | TDK (EPCOS)

ETD core, N87, 482 nH, (L x W x H) 34 x 11.1 x 17.5 mm, B66361G0200X187

Order No.: 83D5250
EAN: 4099889058970
MPN:
B66361G0200X187
B66361G200X187
Series: B663x
B66361G0200X187 TDK (EPCOS) Ferrite cores Image 1
B66361G0200X187 TDK (EPCOS) Ferrite cores Image 2
B66361G0200X187 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Next delivery: 2 pcs. on 2025-06-04
Total Price:
6.53 € *
Price list
Quantity
Price per unit*
3 pcs.
2.1777 €
15 pcs.
1.9040 €
75 pcs.
1.7017 €
400 pcs.
1.5113 €
800 pcs.
1.4399 €
*incl. VAT plus shipping costs
Subject to prior sale

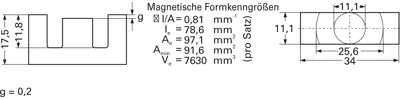

E cores ETD34, type TDK/Epcos B66361.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 43, W 40, H 35 mm, vertical L 27.5, W 40, H 46 mm.

Technical attributes (type, dimension g, AL value, material type): B66361G200X187, 0.2 mm, 482 nH, N87

Technical specifications
Width 11.1 mm
Height 17.5 mm
Length 34 mm
Material N87
Air gap 0.2 mm
AL value 482 nH
Core shape ETD
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 300 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
