B66361G0000X127 | TDK (EPCOS)

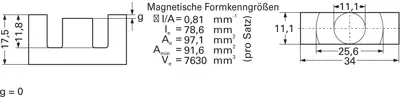

ETD core, N27, 2400 nH, -20/+30 %, (L x W x H) 34 x 11.1 x 17.5 mm, B66361G0000X127
Unit Price (€ / pc.)
1.5351 € *
Available: 305 pcs.
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5351 €
50 pcs.
1.3447 €
300 pcs.
1.1424 €
1200 pcs.
0.9877 €
2400 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
E cores ETD34, type TDK/Epcos B66361.
To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 43, W 40, H 35 mm, vertical L 27.5, W 40, H 46 mm.
Technical attributes (type, dimension g, AL value, material type): B66361GX127, 0 mm, 2400 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 2400 nH | |
| Core shape | ETD | |
| Height | 17.5 mm | |
| Air gap | no air gap | |
| Material | N27 | |
| Tolerance | -20/+30 % | |
| Width | 11.1 mm | |
| Length | 34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 300 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
