B66358G0000X187 | TDK (EPCOS)

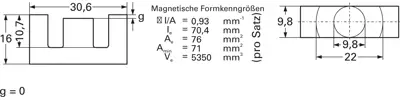

ETD core, N87, 2200 nH, -20/+30 %, (L x W x H) 30.6 x 16 x 16 mm, B66358G0000X187
Unit Price (€ / pc.)
3.2606 € *
Available: 303 pcs.
Next delivery: 900 pcs. on 2026-01-26
Total Price:
3.26 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2606 €
10 pcs.
2.0349 €
50 pcs.
1.7850 €
300 pcs.
1.4875 €
1200 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

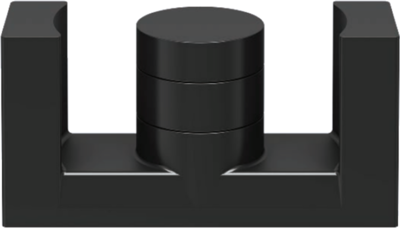

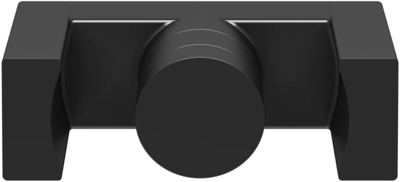

E cores ETD29, type TDK/Epcos B66358.
To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 35.5, W 35.5, H 25.5 mm, vertical L 24, W 35.5, H 41.2 mm.
Technical attributes (type, dimension g, AL value, material type): B66358GX187, 0 mm, 2200 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 16 mm | |
| Material | N87 | |
| Tolerance | -20/+30 % | |
| Length | 30.6 mm | |
| AL value | 2200 nH | |
| Width | 16 mm | |
| Core shape | ETD | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 300 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
