B66358G0000X127 | TDK (EPCOS)

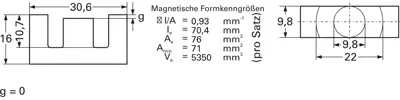

ETD core, N27, 2000 nH, -20/+30 %, (L x W x H) 30.6 x 16 x 16 mm, B66358G0000X127

Order No.: 83D5200
EAN: 4099889058857
MPN:
B66358G0000X127
B66358GX127
Series: B663x
B66358G0000X127 TDK (EPCOS) Ferrite cores Image 1
B66358G0000X127 TDK (EPCOS) Ferrite cores Image 2
B66358G0000X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 426 pcs.
Total Price:
15.23 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5232 €
50 pcs.
1.3328 €
300 pcs.
1.1186 €
1200 pcs.
0.9758 €
2400 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores ETD29, type TDK/Epcos B66358.

To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a ready-to-use transformer or signal transformer: horizontal L 35.5, W 35.5, H 25.5 mm, vertical L 24, W 35.5, H 41.2 mm.

Technical attributes (type, dimension g, AL value, material type): B66358GX127, 0 mm, 2000 nH, N27

Technical specifications
Filter Property Value
AL value 2000 nH
Width 16 mm
Material N27
Height 16 mm
Tolerance -20/+30 %
Length 30.6 mm
Core shape ETD
Air gap no air gap
Logistics
Property Value
Country of origin IN
Customs tariff number 85049011
Original Packaging Bulk with 300 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
