B66347G0000X127 | TDK (EPCOS)

ER core, N27, 3200 nH, -20/+30 %, (L x W x H) 42 x 15 x 21.8 mm, B66347G0000X127

Order No.: 83D6960
EAN: 4099889059342
MPN:
B66347G0000X127
B66347GX127

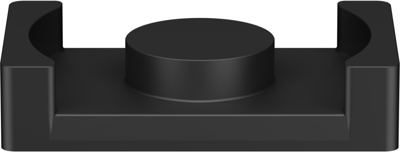

B66347G0000X127 TDK (EPCOS) Ferrite cores Image 1

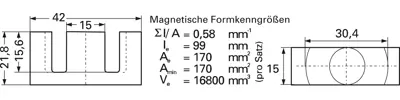

B66347G0000X127 TDK (EPCOS) Ferrite cores Image 2

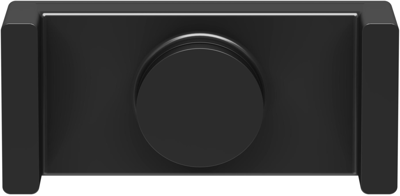

B66347G0000X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
2.8203 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,759.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
624 pcs.
2.8203 €

E cores ER42, type TDK/Epcos B66347.

For compact winding structures. Low leakage inductance. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. without air gap. Single item supply; two items required per core kit; Basic dimensions of a finished transformer or signal transformer: L 33, W 46, H 55 mm.

Technical attributes (type, AL value, material): B66347GX127, 3200 nH, N27

Technical specifications
Width 15 mm
Height 21.8 mm
Length 42 mm
Material N27
Air gap no air gap
Tolerance -20/+30 %
AL value 3200 nH
Core shape ER
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 208 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
