B66335G1000X127 | TDK (EPCOS)
E core, N27, 496 nH, (L x W x H) 55 x 27.8 x 21 mm, B66335G1000X127
Unit Price (€ / pc.)
4.9623 € *
Available: 269 pcs.
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
10 pcs.
4.3673 €
108 pcs.
3.8437 €
216 pcs.
3.6890 €
864 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale

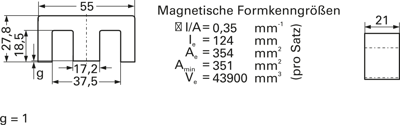

E cores E55/28/21, type TDK/Epcos B66335.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66335G1000X127, 1.0 mm, 496 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 496 nH | |
| Core shape | E | |
| Height | 21 mm | |
| Air gap | 1 mm | |
| Material | N27 | |
| Width | 27.8 mm | |
| Length | 55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 108 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
