B66335G0000X127 | TDK (EPCOS)
E core, N27, 5800 nH, -20/+30 %, (L x W x H) 55 x 21 x 27.8 mm, B66335G0000X127
Unit Price (€ / pc.)
5.0813 € *
Available: 212 pcs.
Leadtime: On Request **
Total Price:
5.08 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0813 €
10 pcs.
3.6295 €
100 pcs.
3.1059 €
500 pcs.
2.7013 €
1000 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale

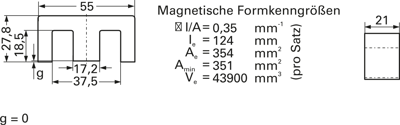

E cores E55/28/21, type TDK/Epcos B66335.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66335GX127, 0 mm, 5800 nH, N27
Technical specifications
| AL value | 5800 nH | |
| Width | 21 mm | |
| Height | 27.8 mm | |
| Core shape | E | |
| Length | 55 mm | |
| Air gap | kein Luftspalt | |
| Material | N27 | |
| Tolerance | -20/+30 % |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk mit 108 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
