B66329G0000X127 | TDK (EPCOS)
E core, N27, 4750 nH, -20/+30 %, (L x W x H) 42 x 20 x 21.2 mm, B66329G0000X127
Unit Price (€ / pc.)
3.8675 € *
Available: 1,088 pcs.
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.4153 €
120 pcs.
2.9869 €
240 pcs.
2.8679 €
960 pcs.
2.6894 €
*incl. VAT plus shipping costs
Subject to prior sale

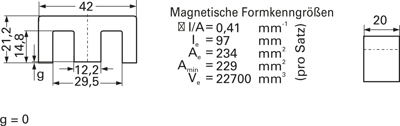

E cores E42/21/20, type TDK/Epcos B66329.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66329GX127, 0 mm, 4750 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | no air gap | |
| Core shape | E | |
| AL value | 4750 nH | |
| Width | 20 mm | |
| Material | N27 | |
| Height | 21.2 mm | |
| Tolerance | -20/+30 % | |
| Length | 42 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 120 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
