B66325G1000X127 | TDK (EPCOS)

E core, N27, 272 nH, (L x W x H) 42 x 21.2 x 15.2 mm, B66325G1000X127

Order No.: 83D896
EAN: 4099889059656
MPN:
B66325G1000X127

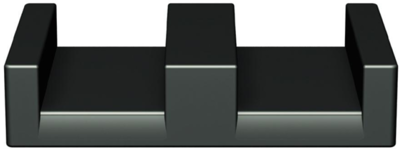

B66325G1000X127 TDK (EPCOS) Ferrite cores Image 1

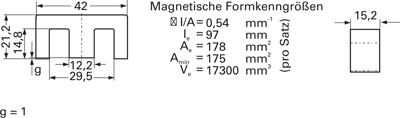

B66325G1000X127 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
2.3919 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,990.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
832 pcs.
2.3919 €

E cores E42/21/15, type TDK/Epcos B66325.

To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

Technical attributes (type, dimension g, AL value, material type): B66325G1000X127, 1.0 mm, 272 nH, N27

Technical specifications
Width 21.2 mm
Height 15.2 mm
Length 42 mm
Material N27
Air gap 1 mm
AL value 272 nH
Core shape E
Logistics
Country of origin CN
Customs tariff number 85049011
Original Packaging Bulk with 208 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
