B66319G0000X130 | TDK (EPCOS)
E core, N30, 3100 nH, -20/+30 %, (L x W x H) 30 x 7.3 x 15.2 mm, B66319G0000X130
Unit Price (€ / pc.)
1.6779 € *
Available: 1,121 pcs.
Total Price:
16.78 € *
Price list
Quantity
Price per unit*
10 pcs.
1.6779 €
50 pcs.
1.4756 €
250 pcs.
1.2733 €
850 pcs.
1.1424 €
3400 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

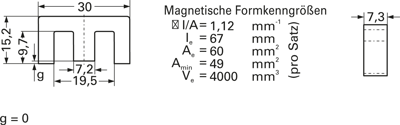

E cores E30/15/7, type TDK/Epcos B66319.
Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66319GX130, 0 mm, 3100 nH, N30
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | no air gap | |
| AL value | 3100 nH | |
| Tolerance | -20/+30 % | |
| Width | 7.3 mm | |
| Height | 15.2 mm | |
| Material | N30 | |
| Core shape | E | |
| Length | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 850 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
