B66317G0250X127 | TDK (EPCOS)
E core, N27, 250 nH, (L x W x H) 25 x 12.8 x 7.5 mm, B66317G0250X127
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 10 Weeks

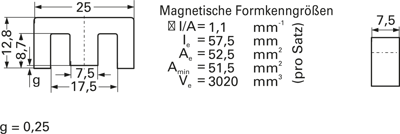

E cores E25/13/7 or EF25, type TDK/Epcos B66317.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66317G250X127, 0.25 mm, 250 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 250 nH | |
| Core shape | E | |
| Height | 7.5 mm | |
| Air gap | 0.25 mm | |
| Material | N27 | |
| Width | 12.8 mm | |
| Length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 900 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
