B66317G0100X127 | TDK (EPCOS)
E core, N27, 489 nH, (L x W x H) 25 x 12.8 x 7.5 mm, B66317G0100X127
Unit Price (€ / pc.)
1.6898 € *
Available: 6,226 pcs.
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.0591 €
50 pcs.
0.9401 €
250 pcs.
0.8092 €
900 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

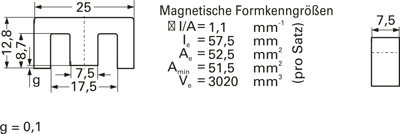

E cores E25/13/7 or EF25, type TDK/Epcos B66317.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66317G100X127, 0.1 mm, 491 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 7.5 mm | |
| Material | N27 | |
| AL value | 489 nH | |
| Length | 25 mm | |
| Core shape | E | |
| Width | 12.8 mm | |
| Air gap | 0.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 900 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
