B66311G0090X127 | TDK (EPCOS)

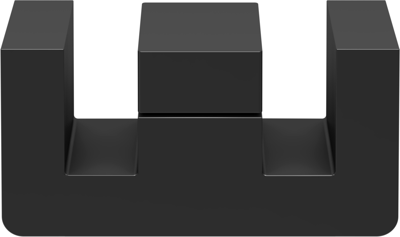

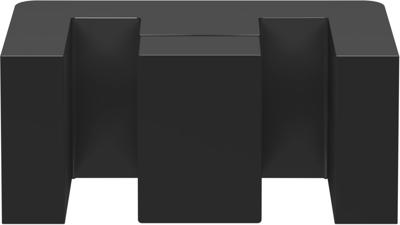

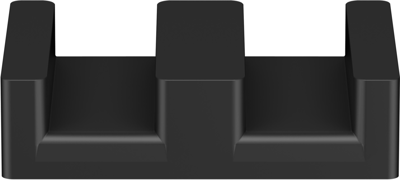

E core, N27, 363 nH, (L x W x H) 20.4 x 10.1 x 4.9 mm, B66311G0090X127
Unit Price (€ / pc.)
0.9020 € *
Available: 5,380 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9020 €
10 pcs.
0.6438 €
100 pcs.
0.5498 €
500 pcs.
0.4784 €
1000 pcs.
0.4355 €
*incl. VAT plus shipping costs
Subject to prior sale

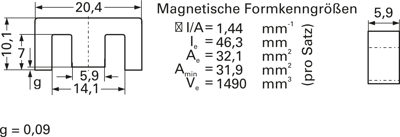

E cores E20/10/6 or EF20, type TDK/Epcos B66311.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66311G90X127, 0.09 mm, 363 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | N27 | |
| Air gap | 0.09 mm | |
| Length | 20.4 mm | |
| Height | 4.9 mm | |
| Width | 10.1 mm | |
| AL value | 363 nH | |
| Core shape | E |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Tray with 1,470 pieces |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
