B66311G0000X127 | TDK (EPCOS)

E core, N27, 1300 nH, -20/+30 %, (L x W x H) 20.4 x 5.9 x 10.1 mm, B66311G0000X127

Order No.: 83D780
EAN: 4099889059434
MPN:
B66311G0000X127
B66311GX127
Series: B66311

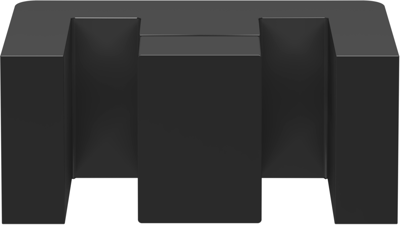

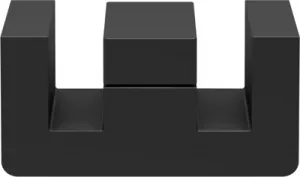

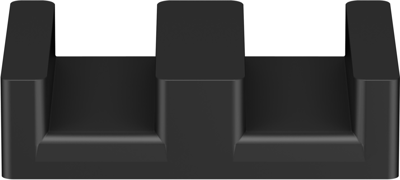

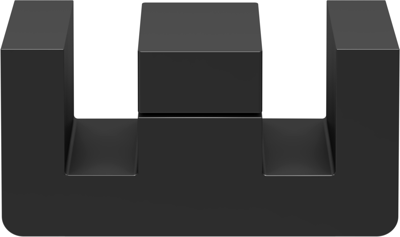

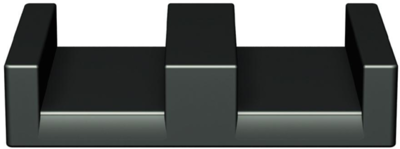

B66311G0000X127 TDK (EPCOS) Ferrite cores Image 1
B66311G0000X127 TDK (EPCOS) Ferrite cores Image 2
B66311G0000X127 TDK (EPCOS) Ferrite cores Image 3
B66311G0000X127 TDK (EPCOS) Ferrite cores Image 4
B66311G0000X127 TDK (EPCOS) Ferrite cores Image 5
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available: 5,874 pcs.
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
25 pcs.
0.5474 €
100 pcs.
0.4641 €
250 pcs.
0.4046 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

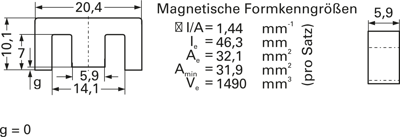

E cores E20/10/6 or EF20, type TDK/Epcos B66311.

To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

Technical attributes (type, dimension g, AL value, material type): B66311GX127, 0 mm, 1300 nH, N27

Technical specifications
Length 20.4 mm
Core shape E
Tolerance -20/+30 %
Air gap no air gap
Width 5.9 mm
Height 10.1 mm
Material N27
AL value 1300 nH
Logistics
Original Packaging Bulk with 1,470 pieces
Customs tariff number 85049011
Country of origin CZ
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
