B66305G0040X127 | TDK (EPCOS)

E core, N27, 250 nH, (L x W x H) 12.6 x 6.5 x 3.7 mm, B66305G0040X127

Order No.: 83D722
EAN: 4099889059380
MPN:
B66305G0040X127
B66305G40X127
Series: B66305

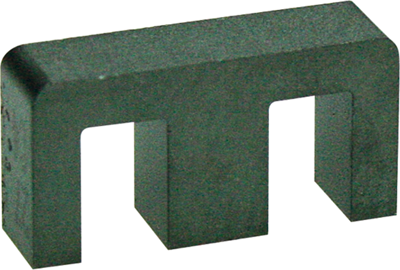

B66305G0040X127 TDK (EPCOS) Ferrite cores Image 1
B66305G0040X127 TDK (EPCOS) Ferrite cores Image 2
B66305G0040X127 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available: 2 pcs.
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5236 €
50 pcs.
0.4403 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores E13/7/4 or EF12.6, type TDK/Epcos B66305.

To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

Technical attributes (type, dimension g, AL value, material type): B66305G40X127, 0.04 mm, 250 nH, N27

Technical specifications
Filter Property Value
Height 3.7 mm
Material N27
AL value 250 nH
Length 12.6 mm
Core shape E
Width 6.5 mm
Air gap 0.04 mm
Logistics
Property Value
Country of origin IN
Customs tariff number 85049011
Original Packaging Carton with 3,450 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
