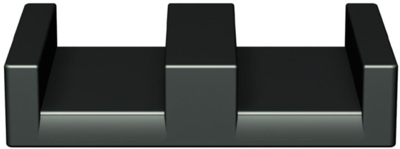

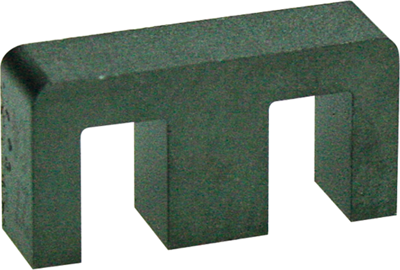

B66305G0000X187 | TDK (EPCOS)
E core, N87, 850 nH, -20/+30 %, (L x W x H) 12.6 x 3.7 x 6.5 mm, B66305G0000X187
Unit Price (€ / pc.)
0.2618 € *
Standard delivery time from the manufacturer is: 20 Weeks

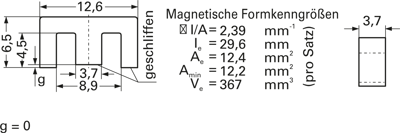

E cores E13/7/4 or EF12.6, type TDK/Epcos B66305.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66305GX187, 0 mm, 850 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 12.6 mm | |
| AL value | 850 nH | |
| Tolerance | -20/+30 % | |
| Width | 3.7 mm | |
| Core shape | E | |
| Height | 6.5 mm | |
| Material | N87 | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 3,450 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
