B66305G0000X127 | TDK (EPCOS)

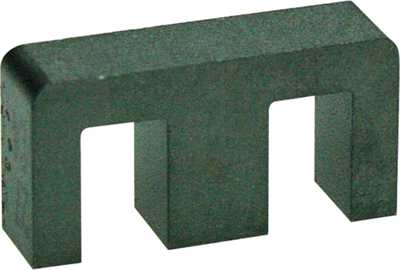

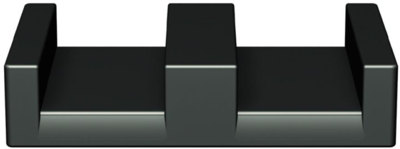

E core, N27, 800 nH, -20/+30 %, (L x W x H) 12.6 x 3.7 x 6.5 mm, B66305G0000X127
Unit Price (€ / pc.)
0.6069 € *
Available: 2,105 pcs.
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6069 €
50 pcs.
0.4522 €
250 pcs.
0.3570 €
1000 pcs.
0.3094 €
2000 pcs.
0.2737 €
*incl. VAT plus shipping costs
Subject to prior sale

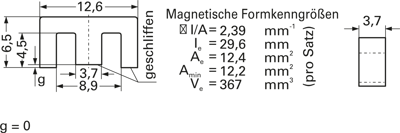

E cores E13/7/4 or EF12.6, type TDK/Epcos B66305.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66305GX127, 0 mm, 800 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 800 nH | |
| Core shape | E | |
| Height | 6.5 mm | |
| Air gap | no air gap | |
| Material | N27 | |
| Tolerance | -20/+30 % | |
| Width | 3.7 mm | |
| Length | 12.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 3,450 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
