B66287G0000X187 | TDK (EPCOS)

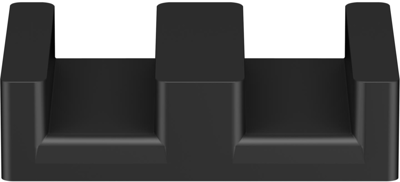

ELP core, N87, 5700 nH, ±25 %, (L x W x H) 31.75 x 20.35 x 6.3 mm, B66287G0000X187
Unit Price (€ / pc.)
3.0107 € *
Available: 2,717 pcs.
Total Price:
3.01 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0107 €
10 pcs.
2.5109 €
100 pcs.
2.1539 €
250 pcs.
1.9516 €
1000 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale

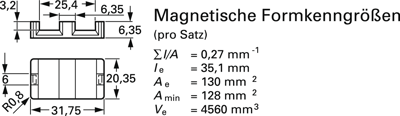

E cores ELP32/6/20 and I32/3/20, type TDK/Epcos B66287.
To IEC 62317-9. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap. The AL reference value is derived from the ELP32 and I32 combination. The ELP32 - ELP32 combination results in an AL reference value of 5700 nH.
Technical attributes (type, AL value, material): B66287GX187, ELP32/6/20, 6300 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | no air gap | |
| AL value | 5700 nH | |
| Tolerance | ±25 % | |
| Width | 20.35 mm | |
| Height | 6.3 mm | |
| Material | N87 | |
| Core shape | ELP | |
| Length | 31.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 304 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
