B66285G0000X187 | TDK (EPCOS)

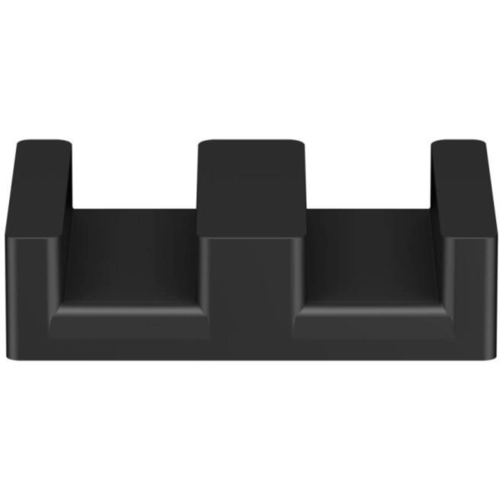

ELP core, N87, 4500 nH, ±25 %, (L x W x H) 21.8 x 15.8 x 5.7 mm, B66285G0000X187
Unit Price (€ / pc.)
1.0353 € *
Available: 131 pcs.
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
1.0115 €
50 pcs.
0.9877 €
100 pcs.
0.9639 €
1200 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

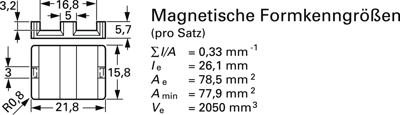

E cores ELP22/6/16 and I22/2.5/16, type TDK/Epcos B66285.
To IEC 62317-9. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap. The AL reference value is derived from the ELP22 and I22 combination. The ELP22 - ELP22 combination results in an AL reference value of 4500 nH.
Technical attributes (type, AL value, material): B66285GX187, ELP22/6/16, 5200 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 21.8 mm | |
| Tolerance | ±25 % | |
| Core shape | ELP | |
| Height | 5.7 mm | |
| Air gap | no air gap | |
| Width | 15.8 mm | |
| AL value | 4500 nH | |
| Material | N87 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 600 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
