B66283G0000X187 | TDK (EPCOS)

ELP core, N87, 2600 nH, ±25 %, (L x W x H) 18 x 10 x 2 mm, B66283G0000X187

Order No.: 84D410
EAN: 4099889060140
MPN:
B66283G0000X187
B66283GX187

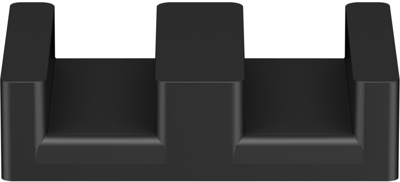

B66283G0000X187 TDK (EPCOS) Ferrite cores Image 1

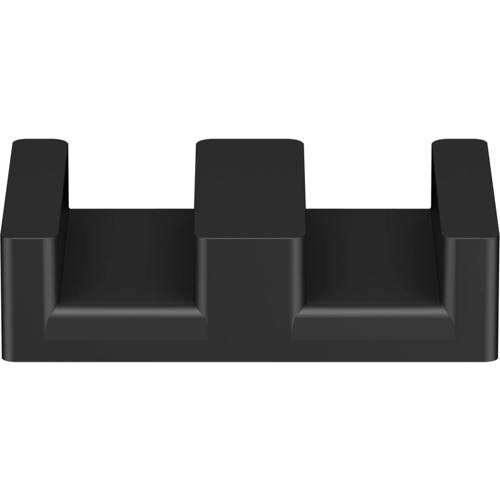

B66283G0000X187 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1,727.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
2016 pcs.
0.8568 €

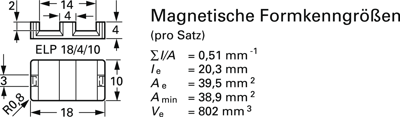

E cores ELP18/4/10 and I18/2/10, type TDK/Epcos B66283.

To IEC 62317-9. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap. The AL reference value is derived from the ELP18 and I18 combination. The ELP18 - ELP18 combination results in an AL reference value of 2600 nH.

Technical attributes (type, AL value, material): B66283GX187, ELP18/4/10, 2900 nH, N87

Technical specifications
Width 10 mm
Height 2 mm
Length 18 mm
Material N87
Air gap no air gap
Tolerance ±25 %
AL value 2600 nH
Core shape ELP
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 1,008 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
