B66229G0000X187 | TDK (EPCOS)

E core, N87, 2300 nH, -20/+30 %, (L x W x H) 32 x 9.5 x 16.4 mm, B66229G0000X187

Order No.: 83D861
EAN: 4099889059571
MPN:
B66229G0000X187
B66229GX187

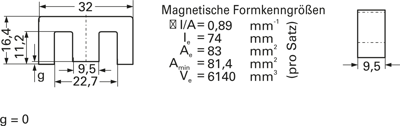

B66229G0000X187 TDK (EPCOS) Ferrite cores Image 1

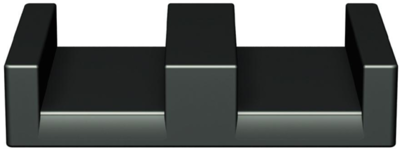

B66229G0000X187 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
1,268.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
960 pcs.
1.3209 €

E cores E32/16/9 or EF32, type TDK/Epcos B66229.

To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

Technical attributes (type, dimension g, AL value, material type): B66229GX187, 0 mm, 2300 nH, N87

Technical specifications
Width 9.5 mm
Height 16.4 mm
Length 32 mm
Material N87
Air gap no air gap
Tolerance -20/+30 %
AL value 2300 nH
Core shape E
Logistics
Country of origin IN
Customs tariff number 85049011
Original Packaging Bulk with 480 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
