B66229G0000X127 | TDK (EPCOS)

E core, N27, 2100 nH, -20/+30 %, (L x W x H) 32 x 9.5 x 16.4 mm, B66229G0000X127

Order No.: 83D860
EAN: 4099889059564
MPN:
B66229G0000X127
B66229GX127
Series: B66229

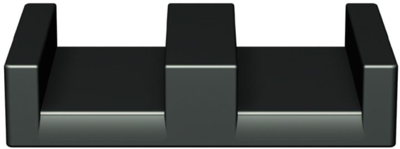

B66229G0000X127 TDK (EPCOS) Ferrite cores Image 1

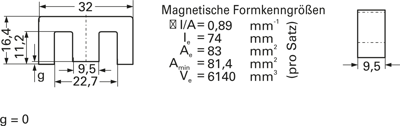

B66229G0000X127 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.49 € *
Price list
Quantity
Price per unit*
10 pcs.
1.7493 €
50 pcs.
1.5351 €
480 pcs.
1.2257 €
960 pcs.
1.1543 €
1920 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores E32/16/9 or EF32, type TDK/Epcos B66229.

To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

Technical attributes (type, dimension g, AL value, material type): B66229GX127, 0 mm, 2100 nH, N27

Technical specifications
Height 16.4 mm
Length 32 mm
Material N27
Core shape E
Tolerance -20/+30 %
Air gap no air gap
Width 9.5 mm
AL value 2100 nH
Logistics
Customs tariff number 85049011
Country of origin ID
Original Packaging Bulk with 480 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
