B65887H4300X041 | TDK (EPCOS)

RM core kit, N41, 4300 nH, ±30 %, outer Ø 29 mm, inner Ø 15 mm, (L x W x H) 42.2 x 30.2 x 19 mm, B65887H4300X041

Order No.: 83D3102
EAN: 4099889058727
MPN:
B65887H4300X041
B65887H4300X41

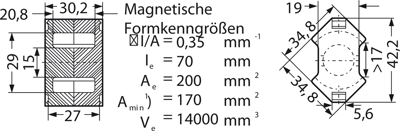

B65887H4300X041 TDK (EPCOS) Ferrite cores Image 1

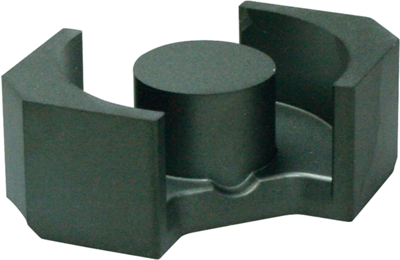

B65887H4300X041 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
8.7108 € *
Standard delivery time from the manufacturer is: 1,000 Weeks
Total Price:
2,090.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
240 pcs.
8.7108 €

For non-linear choke inductors

according to 62317-4. Preferably for power applications. Made of silicon ferrite materials

Design: without center hole

Technical specifications
Filter Property Value
Outer diameter 29 mm
Width 30.2 mm
Height 19 mm
Length 42.2 mm
Material N41
Tolerance ±30 %
AL value 4300 nH
Core shape RM
Inner diameter 15 mm
Logistics
Property Value
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 60 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
