B65885A0000R097 | TDK (EPCOS)

PQ core, N97, 2450 nH, -20/+30 %, (L x W x H) 16.4 x 11.2 x 5.8 mm, B65885A0000R097

Order No.: 82D532
EAN: 4099889052855
MPN:
B65885A0000R097
B65885AR97

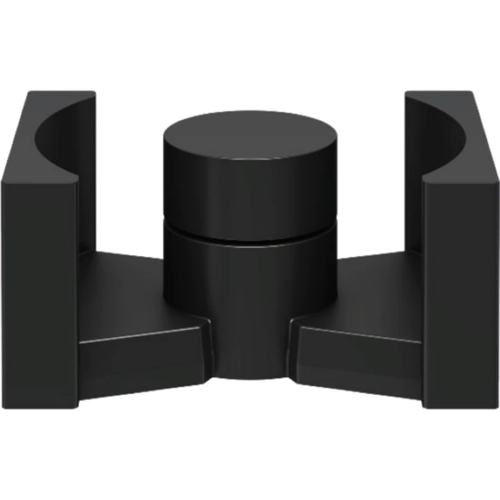

B65885A0000R097 TDK (EPCOS) Ferrite cores Image 1
B65885A0000R097 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,085.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1176 pcs.
1.7731 €

Core kits PQ16/11.6, type TDK/Epcos B65885.

To IEC 62317-13. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap.

Technical attributes (type, AL value, material): B65885AR097, 2450 nH –20/+30 %, N97

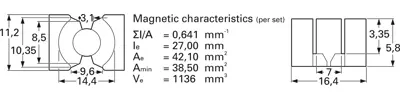

Technical specifications
Width 11.2 mm
Height 5.8 mm
Length 16.4 mm
Material N97
Air gap no air gap
Tolerance -20/+30 %
AL value 2450 nH
Core shape PQ
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 294 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
