B65879B0000R087 | TDK (EPCOS)
PQ core, N87, 4800 nH, -20/+30 %, outer Ø 19 mm, inner Ø 13.45 mm, (L x W x H) 32 x 22 x 15.17 mm, B65879B0000R087
Order No.: 82D590
EAN: 4099889053005
MPN:
B65879B0000R087
B65879BR87
Unit Price (€ / pc.)
4.4744 € *
Standard delivery time from the manufacturer is: 26 Weeks

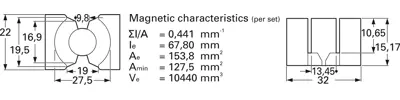

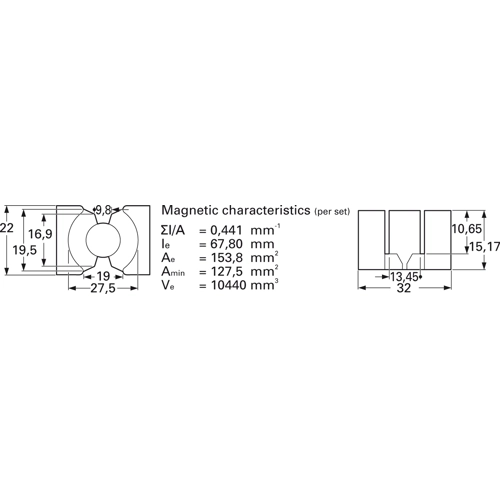

Core kits PQ32/30, type TDK/Epcos B65879.
To IEC 62317-13. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap.
Technical attributes (type, AL value, material): B65879BR087, 4800 nH –20/+30 %, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | PQ | |
| Air gap | no air gap | |
| Material | N87 | |
| AL value | 4800 nH | |
| Tolerance | -20/+30 % | |
| Outer diameter | 19 mm | |
| Inner diameter | 13.45 mm | |
| Length | 32 mm | |
| Width | 22 mm | |
| Height | 15.17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 75 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
