B65877B0000R087 | TDK (EPCOS)
PQ core, N87, 5000 nH, -20/+30 %, outer Ø 22.5 mm, inner Ø 15.5 mm, (L x W x H) 26.5 x 19 x 10.08 mm, B65877B0000R087
Unit Price (€ / pc.)
3.6533 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,461.32 € *
Price list
Quantity
Price per unit*
400 pcs.
3.6533 €
2000 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale

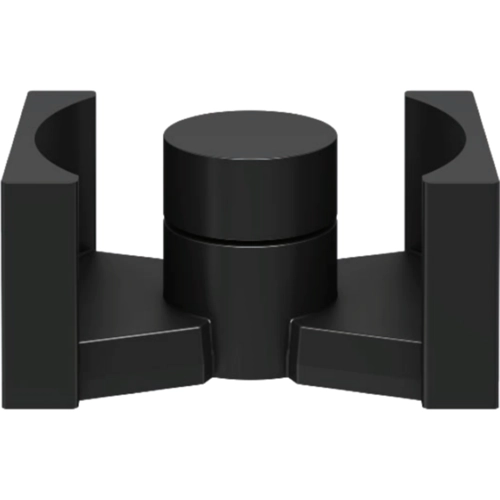

Core kits PQ26/20, type TDK/Epcos B65877.
To IEC 62317-13. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap.
Technical attributes (type, AL value, material): B65877BR087, 5000 nH –20/+30 %, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | PQ | |
| Air gap | no air gap | |
| Material | N87 | |
| AL value | 5000 nH | |
| Tolerance | -20/+30 % | |
| Outer diameter | 22.5 mm | |
| Inner diameter | 15.5 mm | |
| Length | 26.5 mm | |
| Width | 19 mm | |
| Height | 10.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
