B65875B0000R097 | TDK (EPCOS)

PQ core, N97, 3200 nH, -20/+30 %, (L x W x H) 20.5 x 14 x 8.1 mm, B65875B0000R097

Order No.: 82D542
EAN: 4099889052879
MPN:
B65875B0000R097
B65875BR97
B65875B0000R097 TDK (EPCOS) Ferrite cores Image 1
B65875B0000R097 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
3.0345 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,456.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
480 pcs.
3.0345 €

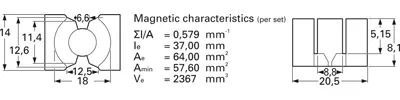

Core kits PQ20/16, type TDK/Epcos B65875.

To IEC 62317-13. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap.

Technical attributes (type, AL value, material): B65875BR097, 3200 nH –20/+30 %, N97

Technical specifications
Width 14 mm
Height 8.1 mm
Length 20.5 mm
Material N97
Air gap no air gap
Tolerance -20/+30 %
AL value 3200 nH
Core shape PQ
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 240 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
