B65875B0000R087 | TDK (EPCOS)

PQ core, N87, 3100 nH, -20/+30 %, (L x W x H) 20.5 x 14 x 8.1 mm, B65875B0000R087

Order No.: 82D540
EAN: 4099889052862
MPN:
B65875B0000R087
B65875BR87
B65875B0000R087 TDK (EPCOS) Ferrite cores Image 1
B65875B0000R087 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
2.4276 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,165.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
480 pcs.
2.4276 €

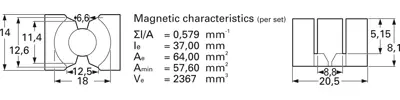

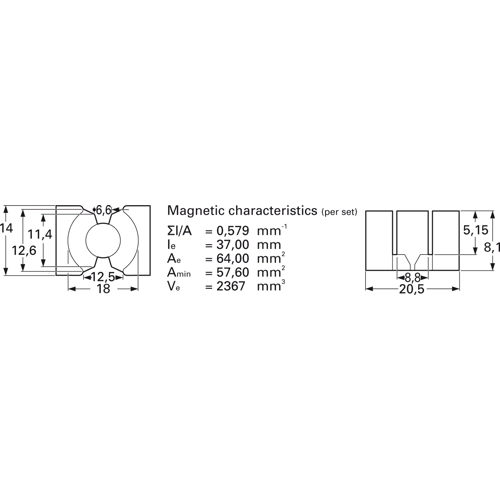

Core kits PQ20/16, type TDK/Epcos B65875.

To IEC 62317-13. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap.

Technical attributes (type, AL value, material): B65875BR087, 3100 nH –20/+30 %, N87

Technical specifications
Width 14 mm
Height 8.1 mm
Length 20.5 mm
Material N87
Air gap no air gap
Tolerance -20/+30 %
AL value 3100 nH
Core shape PQ
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 240 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
