B65841A0000R087 | TDK (EPCOS)
EP core, N87, 1100 nH, -20/+30 %, outer Ø 9.2 mm, inner Ø 4.4 mm, (L x W x H) 11.8 x 7.85 x 10.4 mm, B65841A0000R087
Unit Price (€ / pc.)
1.8088 € *
Available: 1,491 pcs.
Total Price:
18.09 € *
Price list
Quantity
Price per unit*
10 pcs.
1.8088 €
50 pcs.
1.5827 €
250 pcs.
1.3566 €
1000 pcs.
1.2019 €
2000 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale

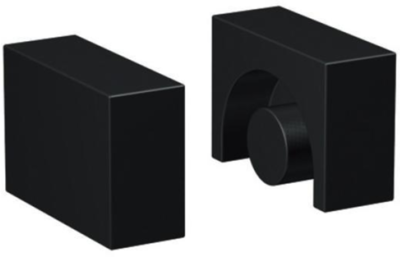

Core kits EP10, type TDK/Epcos B65841.
To IEC 61596. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section.
Technical attributes (type, AL value, material): B65841AR87, 1100 nH, N87

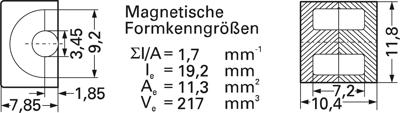

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | EP | |
| Air gap | no air gap | |
| Material | N87 | |
| AL value | 1100 nH | |
| Tolerance | -20/+30 % | |
| Outer diameter | 9.2 mm | |
| Inner diameter | 4.4 mm | |
| Length | 11.8 mm | |
| Width | 7.85 mm | |
| Height | 10.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85049011 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
