B65819J0000R030 | TDK (EPCOS)

RM core, N30, 5000 nH, -20/+30 %, inner Ø 14.75 mm, (L x W x H) 20.3 x 14.75 x 6.75 mm, B65819J0000R030

Order No.: 82D812
EAN: 4099889053180
MPN:
B65819J0000R030
B65819JR30
B65819J0000R030 TDK (EPCOS) Ferrite cores Image 1
B65819J0000R030 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,785.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.7850 €

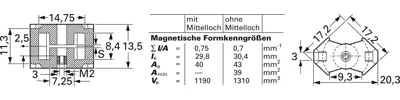

Without air gap, type B65819

according to 62317-4. Made of silicon ferrite materials

Design: type N with threaded sleeve, type J without center hole

Technical attributes (type, AL value, material):

B65819JR30, 5000 nH, N30

Technical specifications
Filter Property Value
Width 14.75 mm
Height 6.75 mm
Length 20.3 mm
Material N30
Air gap no air gap
Tolerance -20/+30 %
AL value 5000 nH
Core shape RM
Inner diameter 14.75 mm
Logistics
Property Value
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 250 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
