B65813J0250A041 | TDK (EPCOS)

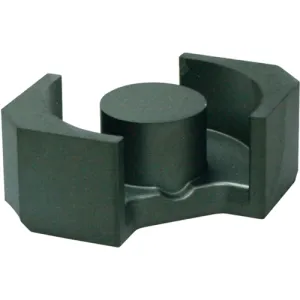

RM core, N41, 250 nH, ±3 %, outer Ø 21.2 mm, inner Ø 5.4 mm, (L x W x H) 28.5 x 18.7 x 9.35 mm, B65813J0250A041
Unit Price (€ / pc.)
4.7005 € *
Available: 505 pcs.
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7005 €
10 pcs.
3.2011 €
100 pcs.
2.2610 €
*incl. VAT plus shipping costs
Subject to prior sale
Core kits, RM10, type TDK/Epcos B65813.
To IEC 62317-4. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. type N with threaded sleeve, type J without center hole.
Technical attributes (type, AL value, material): B65813J250A41, 250 nH, N41
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | RM | |
| Air gap | 0.44 mm | |
| Material | N41 | |
| AL value | 250 nH | |
| Tolerance | ±3 % | |
| Outer diameter | 21.2 mm | |
| Inner diameter | 5.4 mm | |
| Length | 28.5 mm | |
| Width | 18.7 mm | |
| Height | 9.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 200 pieces |
| Customs tariff number | 85049011 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
