B65807N0063A033 | TDK (EPCOS)

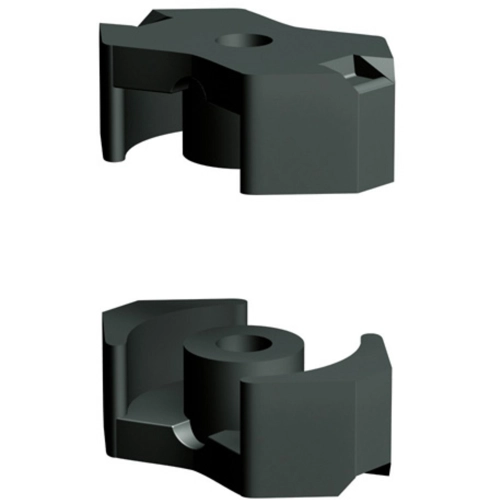

RM core, M33, 63 nH, ±3 %, inner Ø 12.4 mm, (L x W x H) 17.9 x 8.2 x 12.5 mm, B65807N0063A033
Unit Price (€ / pc.)
2.261 € *
Standard delivery time from the manufacturer is: 12 Weeks
Core kits, RM6, type TDK/Epcos B65807.
To IEC 62317-4. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. type C with center hole, type N with threaded sleeve, type J without center hole.
Technical attributes (type, AL value, material): B65807N63A33, 63 nH, M33
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 63 nH | |
| Air gap | no air gap | |
| Core shape | RM | |
| Length | 17.9 mm | |
| Height | 12.5 mm | |
| Material | M33 | |
| Width | 8.2 mm | |
| Inner diameter | 12.4 mm | |
| Tolerance | ±3 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 500 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
