B65805N0315A048 | TDK (EPCOS)

RM core, N48, 315 nH, ±3 %, inner Ø 10.2 mm, (L x W x H) 14.6 x 6.8 x 10.5 mm, B65805N0315A048

Order No.: 82D652
EAN: 4099889053081
MPN:
B65805N0315A048
B65805N315A48
Series: B658x

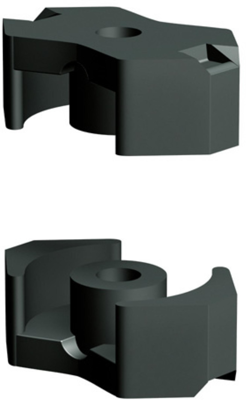

B65805N0315A048 TDK (EPCOS) Ferrite cores Image 1
B65805N0315A048 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
2.1063 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4,212.60 € *
Price list
Quantity
Price per unit*
2000 pcs.
2.1063 €
5000 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale

Core kits, RM5, type TDK/Epcos B65805.

To IEC 62317-4. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. type N with threaded sleeve, type J without center hole.

Technical attributes (type, AL value, material): B65805N315A48, 315 nH, N48

Technical specifications
Width 6.8 mm
Height 10.5 mm
Length 14.6 mm
Material N48
Air gap 0.03 mm
Tolerance ±3 %
AL value 315 nH
Core shape RM
Inner diameter 10.2 mm
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
