B65805N0250A048 | TDK (EPCOS)

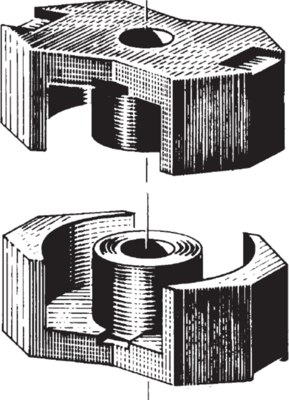

RM core, N48, 250 nH, ±3 %, inner Ø 10.2 mm, (L x W x H) 14.6 x 6.8 x 10.5 mm, B65805N0250A048
Unit Price (€ / pc.)
1.8088 € *
Standard delivery time from the manufacturer is: 12 Weeks
Core kits, RM5, type TDK/Epcos B65805.
To IEC 62317-4. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. type N with threaded sleeve, type J without center hole.
Technical attributes (type, AL value, material): B65805N250A48, 250 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 250 nH | |
| Air gap | 0.06 mm | |
| Core shape | RM | |
| Length | 14.6 mm | |
| Height | 10.5 mm | |
| Material | N48 | |
| Width | 6.8 mm | |
| Inner diameter | 10.2 mm | |
| Tolerance | ±3 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 500 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
