B65803N0160A048 | TDK (EPCOS)

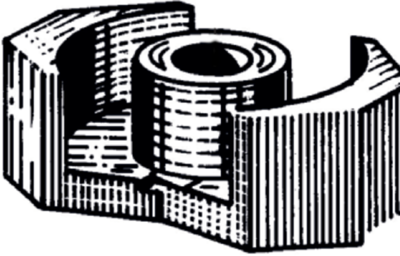

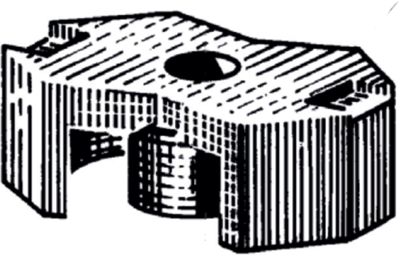

RM core, N48, 160 nH, ±3 %, inner Ø 5.8 mm, (L x W x H) 11 x 4.6 x 10.5 mm, B65803N0160A048
Unit Price (€ / pc.)
3.3201 € *
Available: 1,506 pcs.
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
2.9155 €
100 pcs.
2.5585 €
600 pcs.
2.3324 €
1200 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale
Core kits, RM4, type TDK/Epcos B65803.
To IEC 62317-4. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. type N with threaded sleeve, type J without center hole.
Technical attributes (type, AL value, material): B65803N160A48, 160 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | RM | |
| Air gap | 0.06 mm | |
| Material | N48 | |
| AL value | 160 nH | |
| Tolerance | ±3 % | |
| Inner diameter | 5.8 mm | |
| Length | 11 mm | |
| Width | 4.6 mm | |
| Height | 10.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Tray with 600 pieces |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
