B65701T0250G048 | TDK (EPCOS)
P core kit, N48, 250 nH, ±3 %, outer Ø 30.5 mm, inner Ø 25 mm, (H) 19 mm, B65701T0250G048
Unit Price (€ / pc.)
8.3419 € *
Available: 39 pcs.
Total Price:
8.34 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3419 €
10 pcs.
7.3423 €
50 pcs.
6.8425 €
160 pcs.
6.5093 €
640 pcs.
6.1166 €
*incl. VAT plus shipping costs
Subject to prior sale

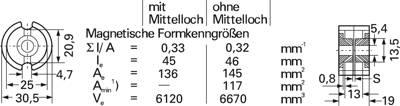

Core kits P 30 x 19, type TDK/Epcos B65701.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65701T250G48, 250 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | P | |
| Air gap | 0.72 mm | |
| Outer diameter | 30.5 mm | |
| AL value | 250 nH | |
| Material | N48 | |
| Height | 19 mm | |
| Tolerance | ±3 % | |
| Inner diameter | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
